Ducato / Boxer / Relay Bluetooth controlled semi air suspension 2014 – 2023

Description

Air suspension for Ducato Boxer and Relay  (2006-2024) AirSprings Premium with Bluetooth control

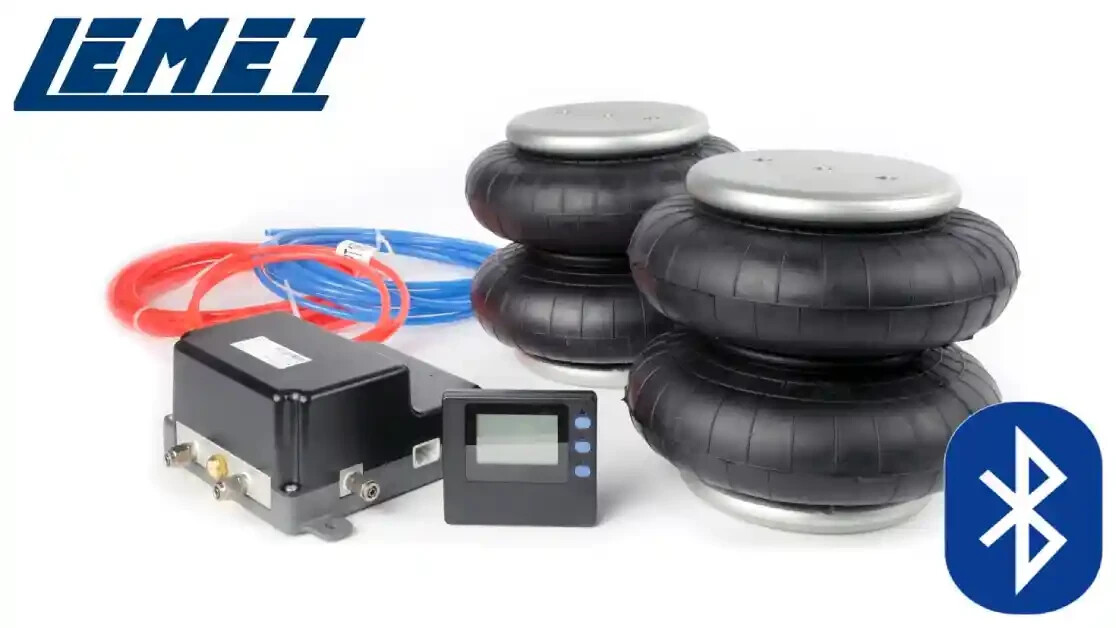

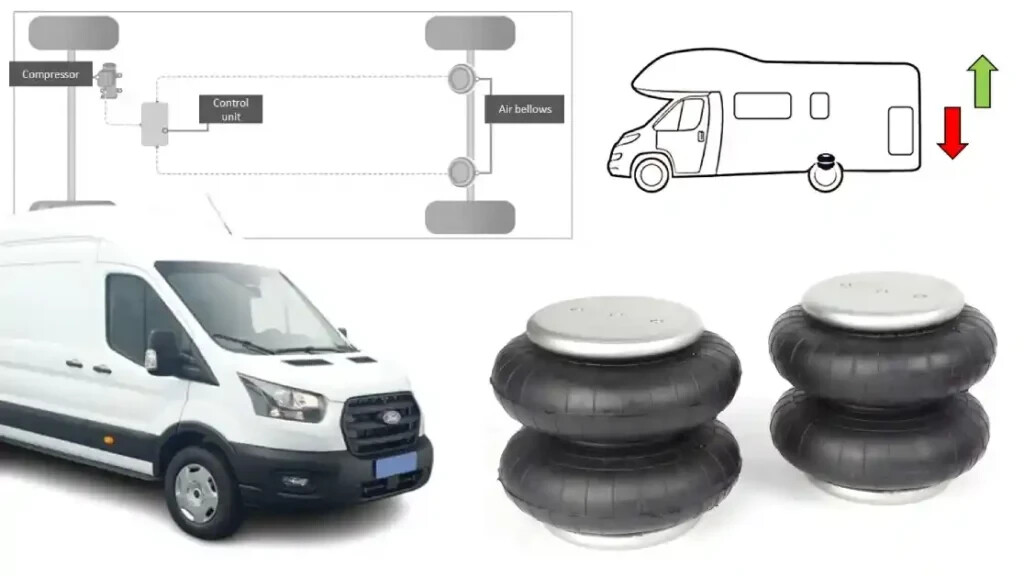

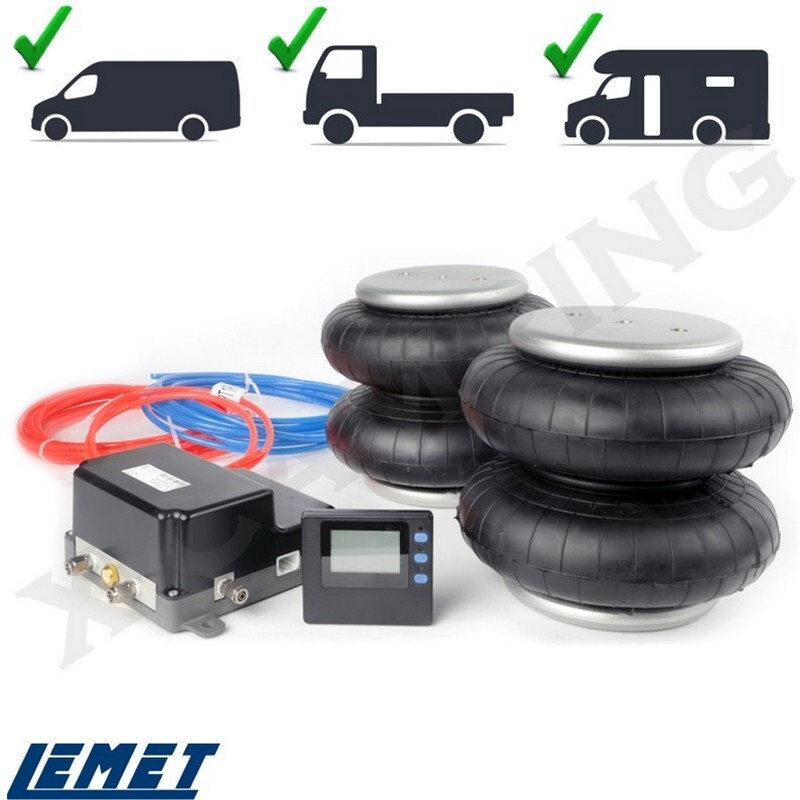

The AirSprings Premium air suspension by LEMET is an innovative 2-circuit system for the Fiat Ducato Type 250 (Fiat Ducato Third generation produced from 2006 until 2024) and identical models. Equipped with a Bluetooth control unit and a mobile panel, it offers simple operation, safety and precise adjustment of the air pressure in the air springs. Durable 170 mm air bellows (170/2) made from a patented rubber compound and the powerful air suspension compressor ensure durability and comfort, while the complete Ducato air suspension kit enables a custom-fit installation. System is suitable for vehicles with both manual and electric parking brakes. An ideal solution for comfort and stability in heavily loaded vehicles.

AirSprings Premium air suspension system: configuration options

Bluetooth control and touch screen panel

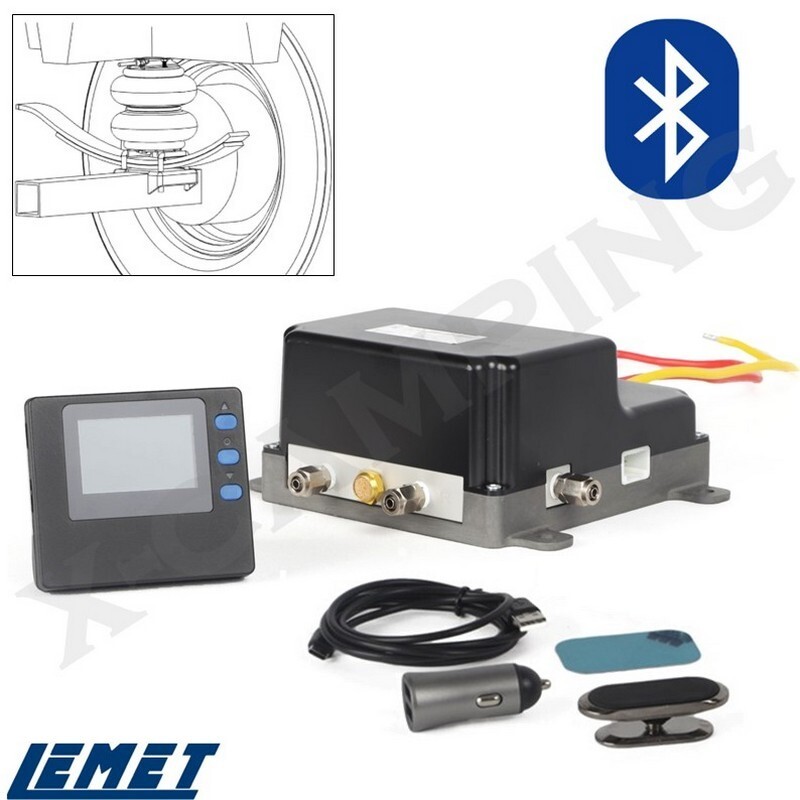

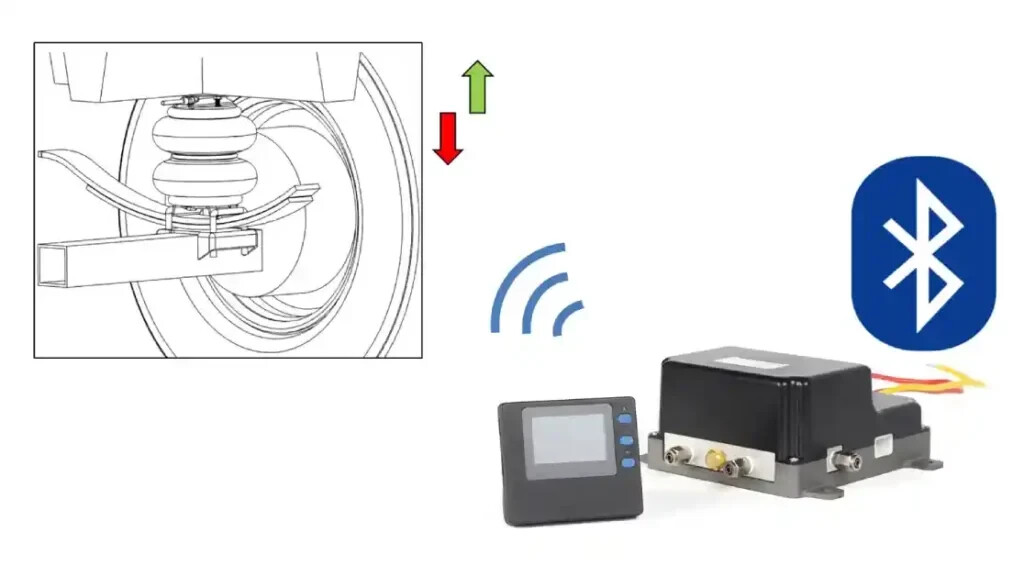

The central control unit with Bluetooth interface is the centrepiece of the air suspension kit. It enables wireless connection with a mobile touch screen panel.

Security: The control panel and control unit are coded to ensure a secure connection.

Flexibility: The pneumatic suspension touch screen panel can be attached to the windscreen in the holder supplied or stowed in a storage compartment.

Simple usage: The two air suspension bellows can be controlled independently of each other via the panel and the pressure can be precisely adjusted.

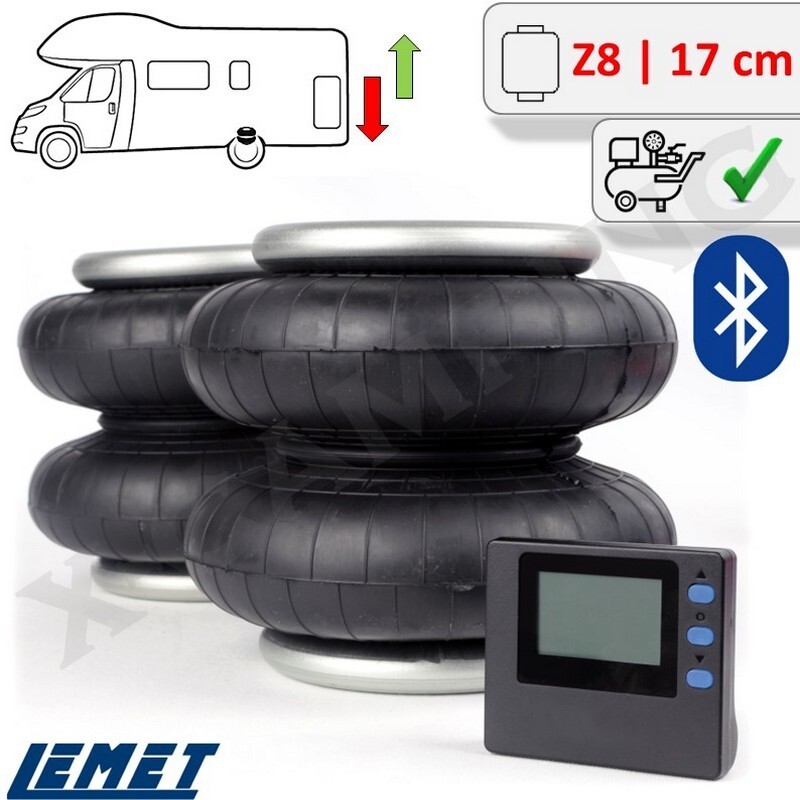

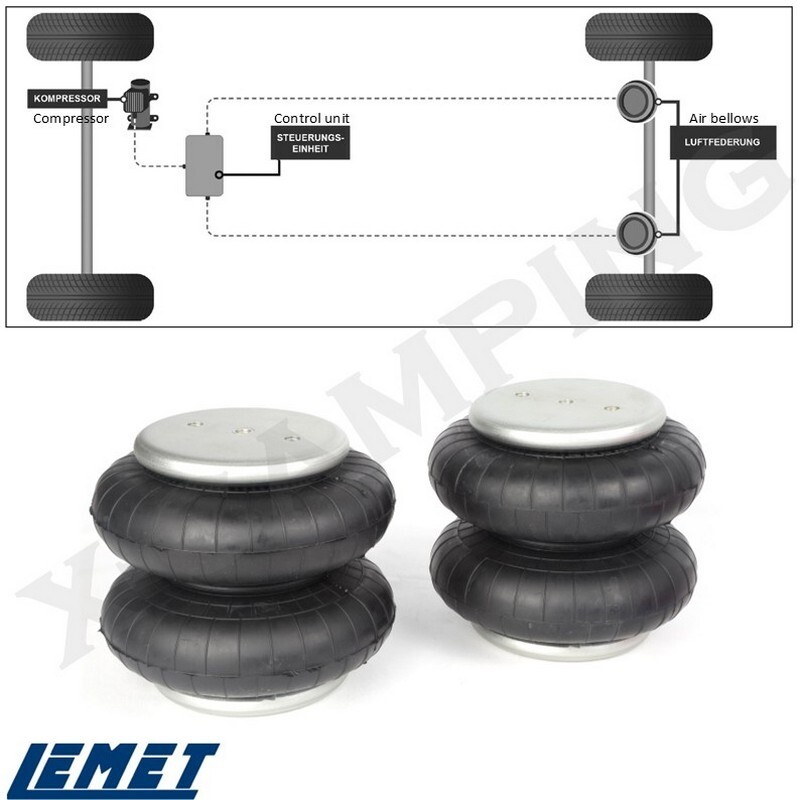

170/2 air bellows (Z8 pneumatic bellows)

The robust LEMET air bellows made from a patented rubber compound ensure durability and tightness. This technology is also used in the initial assembly of leading car manufacturers such as Jeep.

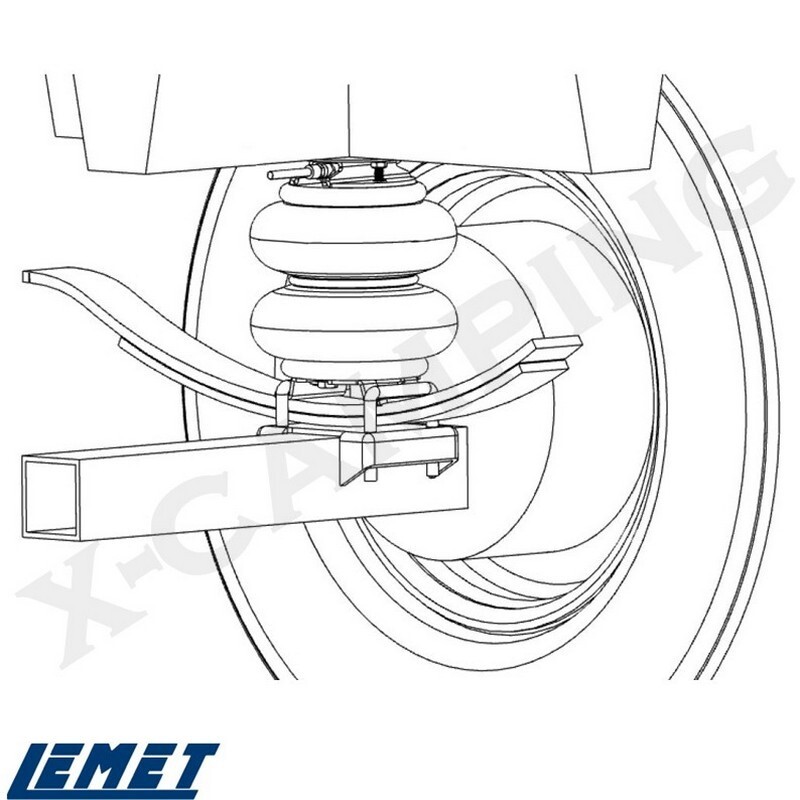

Perfect fit: Specially developed adapters enable easy air suspension installation between the frame and rear axle.

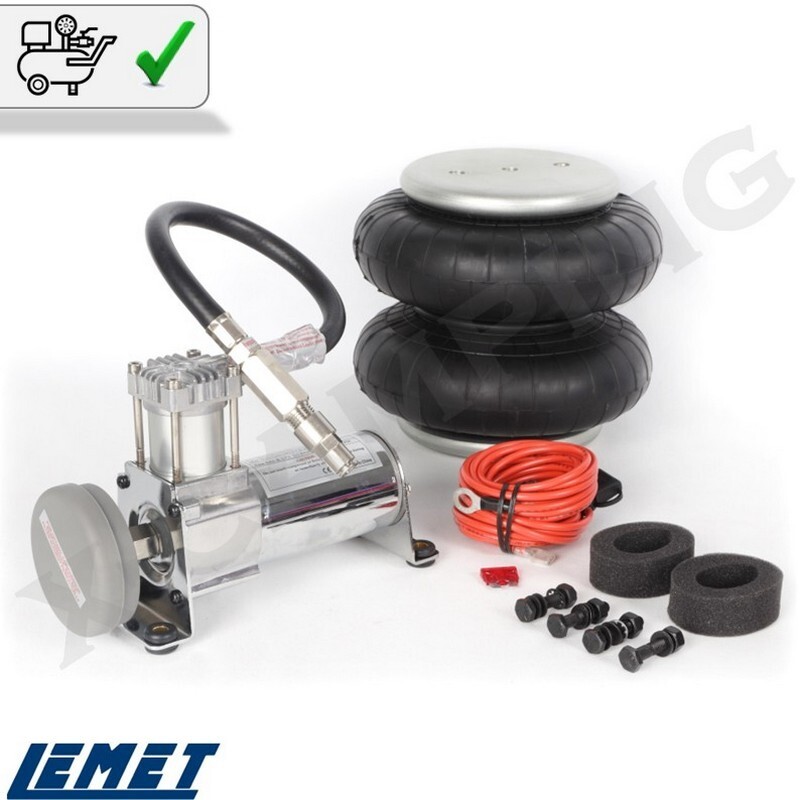

Powerful air suspension compressor

A compact and powerful air suspension compressor ensures fast inflation of the pneumatic bellows.

Delivery rate: 37 litres per minute for short running times of 1-2 minutes.

Compact design: pneumatic suspension compressor an be installed inconspicuously behind the panelling under the driver’s seat.

Special brackets: how to install air suspension system?

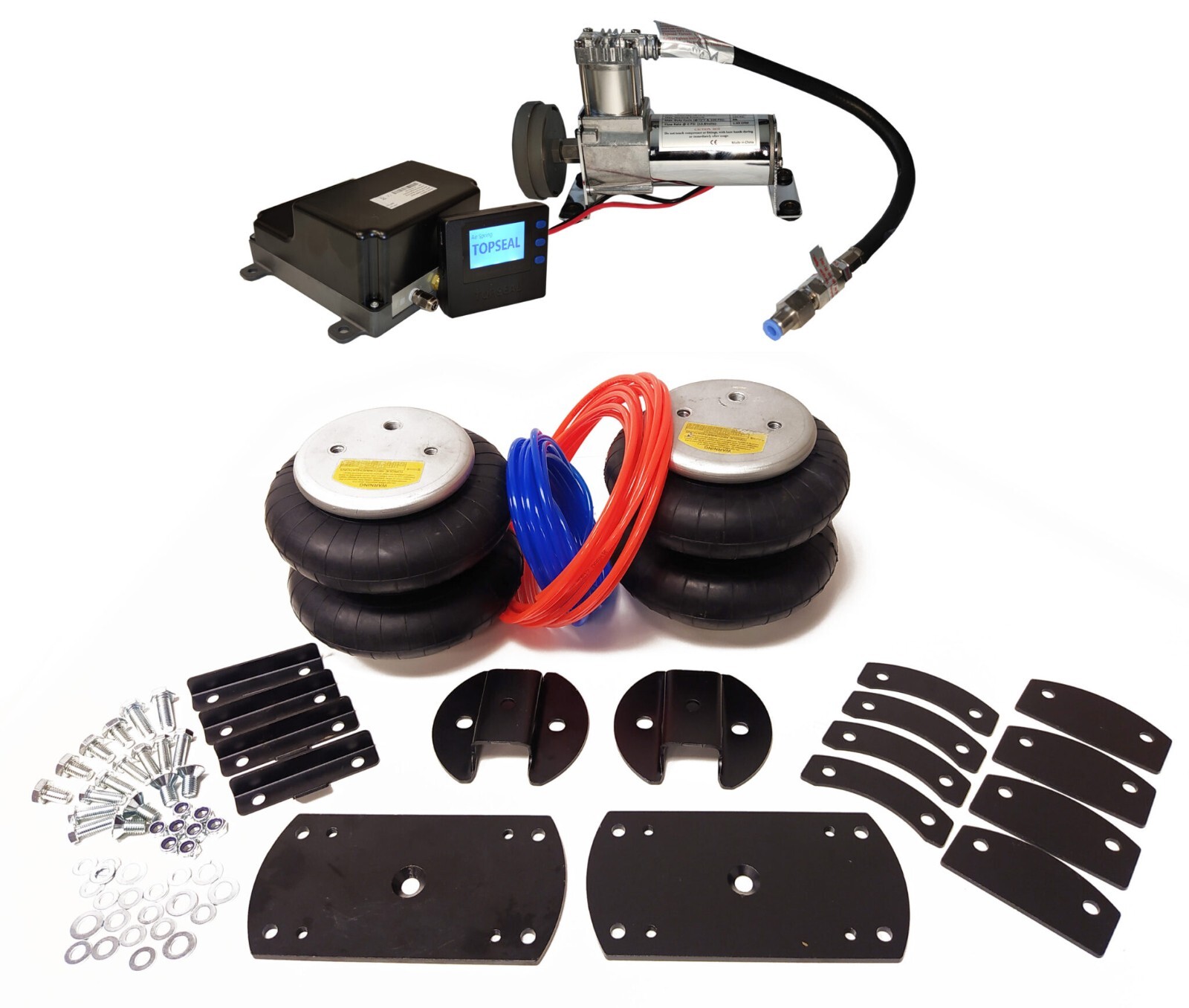

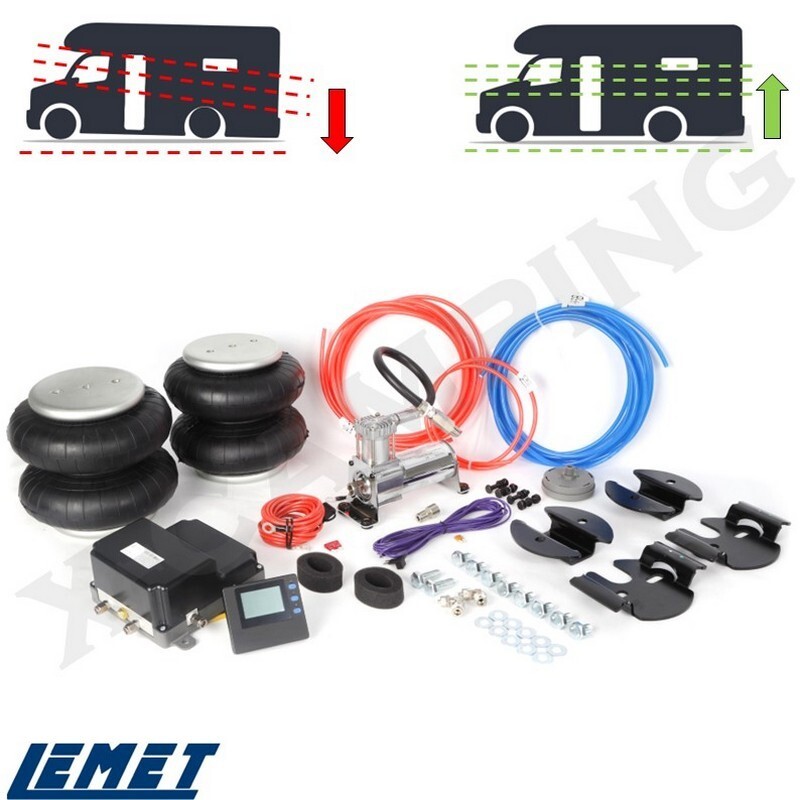

The AirSpring system is supplied as a complete set, including all the necessary connecting elements, hoses and brackets, which are specially designed for the Fiat Ducato third generation and identical models from Stellantis Group (Citroën Jumper, Peugeot Boxer).
