Amplified DAB splitter Twin Dual Male Fakra Antenna Ae​rial Adaptor DIN 12V

Description

Car Radio Antenna Adapter Diversity System Lead Cable Dual Fakra to DIN

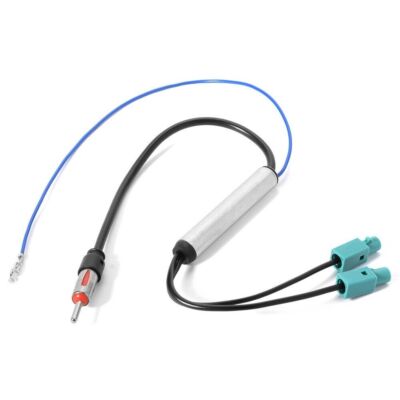

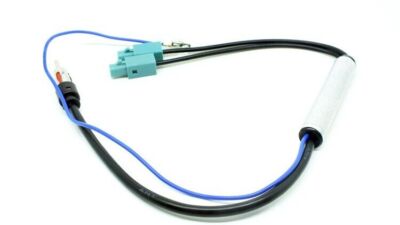

2 Separate Dual Fakra leads to one din aerial adaptor, with a 12v blue power lead.

For all cars with 2 OEM AM/FM aerials. (With amplified remote feed)

The Aerial Adapter is needed when replacing the original factory fitted head unit with an aftermarket head unit and your vehicle has a DIN type aerial lead fitted.

This adaptor is commonly required on Audi/VW where the original radio has an integral booster for the aerial connection.

2x Fakra (Z) with Phantom power supply without Antenna Diversity

• Working Frequency: FM 80MHz-108MHz, AM 520KHz-1710KHz;
• Gain: FM 10dB, AM 8dB;
• Impedance: 75 Ohm Nominal;
• VSWR: max 2.0: 1;
• Working Current: 10mA – 30mA;
• Working Voltage: DC 10.5V – 16V;

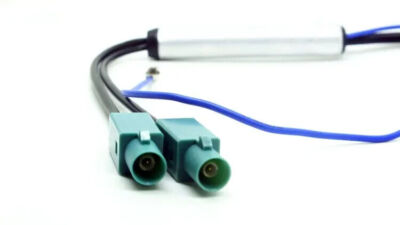

• Antenna Input: Dual Fakra Z Male Connector;

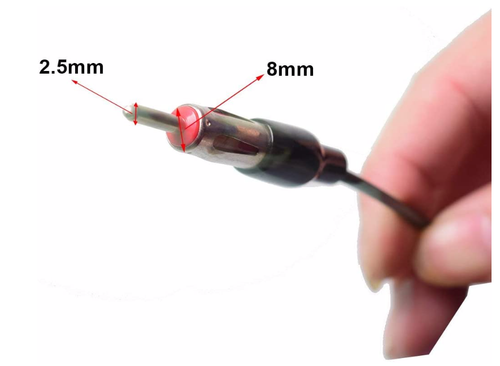

• Antenna Output: Motorola DIN Plug Connector;
• Working Temperature: -40 – 85 ℃

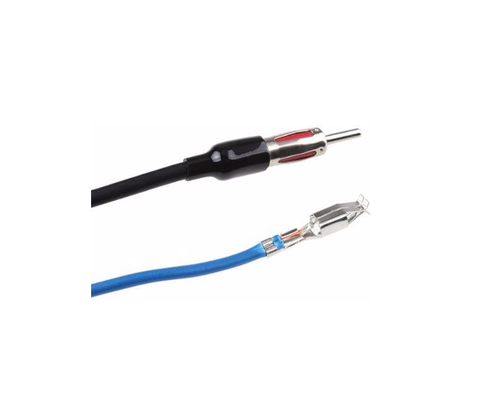

Note; The blue cable on this adaptor needs connecting to a 12v ignition live (Remote Out) from the head unit wiring.
